Stationary Windbreak Panels
- In Just 5 Minutes
- One Person
- No Tools
- No Bolts

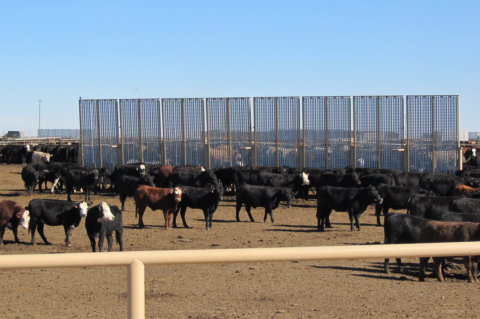

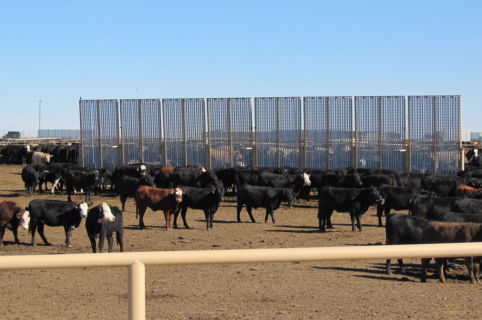

In the tests we’ve run, this panel stops over 95% of the wind velocity and snow does not swirl over the
top like a solid windbreak. Cattle will not drift away from protection.
•
Heat Flows Up Through Holes
•
Stops 79% of Sun
The outside frame of these panels is made
of 1 1/2” x 3:” x 14 gauge tube. The 21%
perforated sheets are 20 gauge galvanized-
punched full of 1 5/8” holes and corrugated to
3”.
Weight per 12’ sheet is 54 lbs. - 7’ x 12’
complete panel weight is 225 lbs.

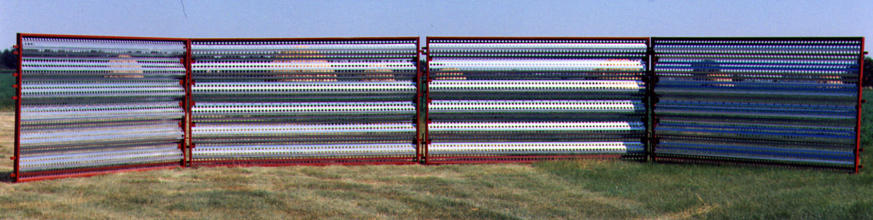

Portable Windbreak Panel
The Windbreak Panel will hook-up to the Daniels Livestock Buildings and all of our portable Livestock
Panels. The Windbreak Panels can be set up in an open area or around a building for added protection.
